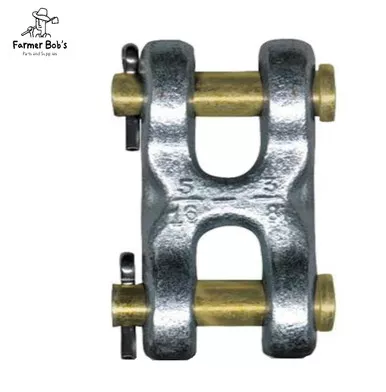

CM Double Clevis (Mid-Link)WLL: 9200Sizes: 7/16″ – 1/2″
Designed for use with Grade 70 chain as a quick and easy temporary repair.
Zinc-plated finishSize forged into linkQuick easy installations
| DOUBLE CLEVIS (MID-LINK) | ||||||||||
| For ChainSize (in.) | Working LoadLimit (lbs.) | StandardPackage | ProductCode | Dimensions (in) | Weight(lbs) | |||||
| A | B | C | D | E | F | |||||
| 1/4 and 5/16 | 4,700 | 0.43 | 0.38 | 1.70 | 1.12 | 2.61 | 0.91 | 0.35 | ||
| 3/8 | 5400 | 0.50 | 0.38 | 2.00 | 1.31 | 3.06 | 1.09 | 0.46 | ||
| 7/16 and 1/2 | 9200 | 0.66 | 0.59 | 2.59 | 1.74 | 3.90 | 1.31 | 1.10 | ||
